OpenNebula on Stackscale: a sovereign private cloud powered by open source flexibility
Request your deployment

Deploy your infrastructure with OpenNebula 7.0 on Stackscale bare-metal servers, hosted in high-availability European data centers. Build a private, hybrid, and edge cloud with full control and performance.

European sovereignty
Infrastructure in Madrid and Amsterdam with regulatory compliance and advanced security.

Hybrid and edge-ready cloud
Integrate OpenNebula 7.0 with local, public and edge resources under a single control panel.

Optimized bare-metal
Latest-generation Intel and AMD servers with optional GPUs for AI and video workloads.

Enterprise Storage & Networking NetApp systems with cross-datacenter replication and a fully redundant multi-100G network.

OpenNebula 7.0: Next-Generation Private Cloud

OpenNebula is a leading open-source platform for building private, hybrid, and edge clouds. Version 7.0 introduces enhancements that make it even more powerful when deployed on Stackscale infrastructure:

Simple management

New FireEdge interface and redesigned Sunstone dashboard.

Automation

RESTful APIs with integration for Terraform and Ansible.

Kubernetes & containers

Easily deploy Kubernetes clusters on bare-metal.

Integrated Marketplaces

Prebuilt images and templates ready to use.

Security & Multi-Tenancy

Advanced role-based access control (RBAC) and project-level isolation.

Resource optimization

Smart scheduler for efficient workload distribution.

Discover OpenNebula 7.0

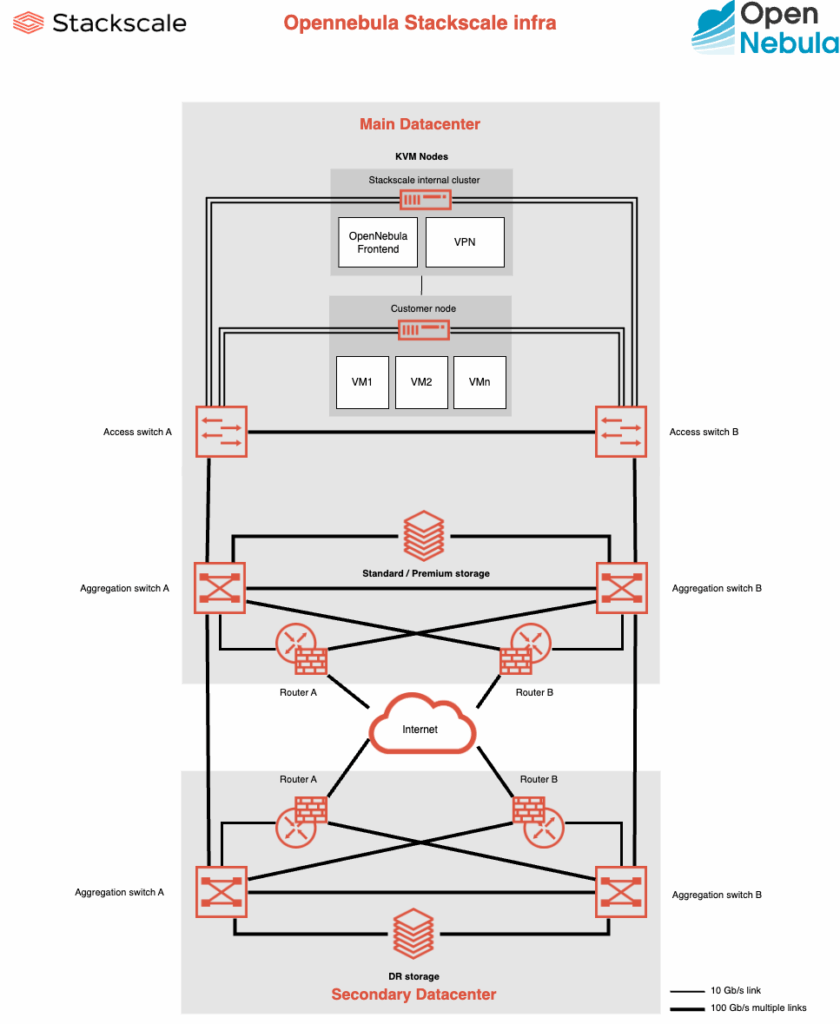

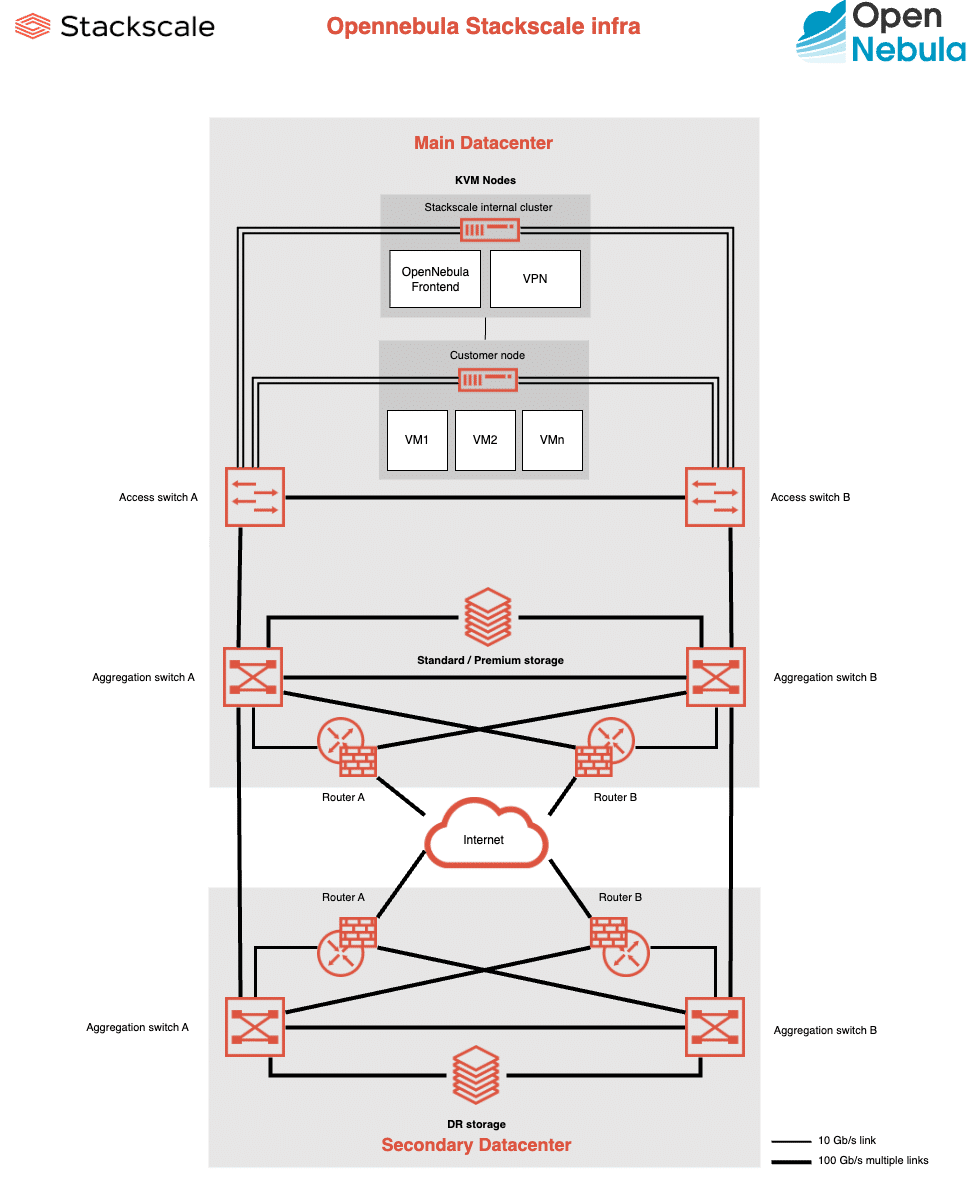

Cloud Architecture at Stackscale

The infrastructure is designed to combine the flexibility of OpenNebula with the robustness of bare-metal hardware:
  • Frontend + VPN deployed on Stackscale’s internal cluster.
  • Private networks to interconnect hosts and VMs.
  • Public network with dedicated IPs for external services.
  • Multi-datacenter deployment across Madrid (MAD3 and MAD4) and Amsterdam (AMS2) to ensure true geographic high availability.
open nebula infography

Stackscale Data Centers

  • MAD3 (Equinix, Alcobendas – Madrid) High-performance infrastructure with access to dozens of telecom carriers.
  • MAD4 (Interxion/Digital Realty, Madrid) Southern Europe’s digital hub, with energy efficiency and global connectivity.
  • AMS2 (NorthC Almere, Amsterdam) Carrier-neutral and sustainable data center in the heart of Europe’s digital hub.
The Madrid data centers are located more than 10 km apart, ensuring true geographic high availability.

Available servers (Hardware)

  • G2 – Intel Cascade Lake (Dell R640)
    • Up to 768 GiB RAM.
    • Intel Silver and Gold processors with Meltdown/Spectre hardware mitigation.
    • 40 Gb/s per node in redundant network.
  • G3 – AMD EPYC (Raphael and Genoa)
    • From 32 GiB to 768 GiB RAM.
    • Base speeds up to 3.8 GHz and turbo up to 5.4 GHz.
    • Optional: NVIDIA Tesla T4, L4 and L40S GPUs.
    • Up to 80 Gb/s per node in a redundant network.

NetApp network storage

Fully redundant systems with replication between data centers.

– Premium Flash: All-Flash (≤1 ms latency, >6,000 IOPS/TB).
– HybridFlash + SAS, cost optimized for secondary loads.
– Archive (optional)for cold storage.
– Automatic snapshots every 6h (16 versions) and customized policies.

Network and connectivity

– Core multi-100Gup to 800 Gb/s on main trunks.
– Uplinks Tier 1: CenturyLink, Telia, GTT.
– Peering at ESpanixDE-CIX, AMS-IX.
– Public IPv4 subnets: /29, /28, /27…
– Dedicated private networks for interconnection of VMs.

Deployment process

Define your needs (servers, storage, networks).
Stackscale validates and deploys the bare-metal infrastructure .
3.OpenNebula is installed on the selected hosts.
4. The environment is ready for immediate use.
Start your deployment with OpenNebula on Stackscale

Contact us to learn more about OpenNebula at Stackscale

OpenNebula Formulario EN

Order

For Stackscale to implement the infrastructure, you must complete the following order form:

Customer data

Please fill in your details:

Please enter the contact emails for these roles:

Servers

G2 Servers (Intel-based)

Server model

Quantity

128M Node

384M Node

 768M Node

192C Node

384C Node

G3 servers (Intel-based)

Server model

Quantity

32 Node

64 Node

128 Node

384M Node

384C Node

768M Node

768C Node

Networking

Type of network

Quantity

How many IPv4 addresses?

How many private networks?

NAS storage

Storage type

GB

Premium

Standard

OpenNebula and Stackscale form the perfect combination for companies looking for a secure, flexible and high-performance private/hybrid cloud in Europe. secure, flexible and high-performance private/hybrid cloud in Europe.. With infrastructure bare-metal, storage enterprise and expert support, your cloud will be ready to grow without limits.

Talk to an OpenNebula expert

Acknowledgements

The Hosted OpenNebula Cloud – Ready Certification is supported by the IPCEI-CIS ONEnextgen project (UNICO IPCEI-2023-003) to enable the deployment of EU sovereign cloud instances.
